Best price and high quality for your goods lifting solutions.

Fully caged cargo lift
Fully caged cargo lift




    Fully Caged Cargo Lift Pictures

    Fully Caged Cargo Lift

    Better Protection, Better Performance! Nostec lift can provide rich options for cargo lift, such as mesh enclosure, floor mesh, ground installation if site not available for pit, roller shutter door and safety, electric lock, and motor cover box for pump station and control.

    Standard Features

    Standard configuration comes with lift
    Lift control panel
    Control Panel

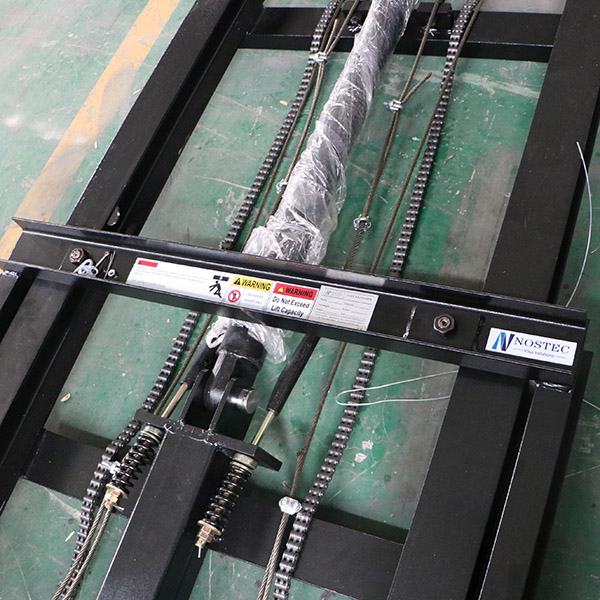

    Lift Cylinder

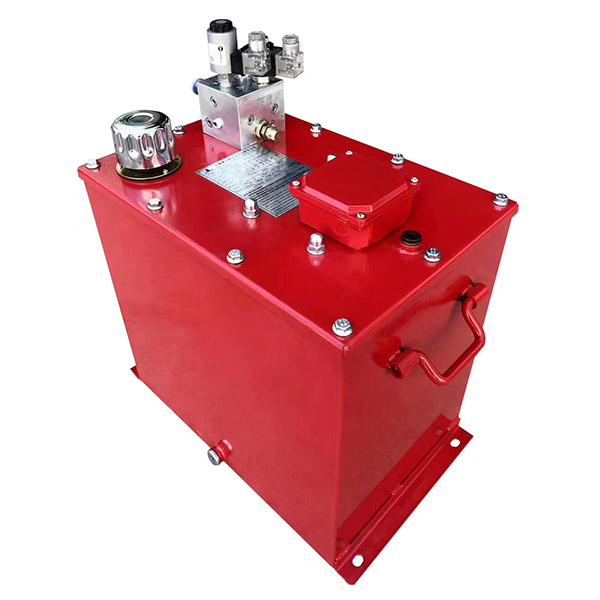

    Submersible Motor

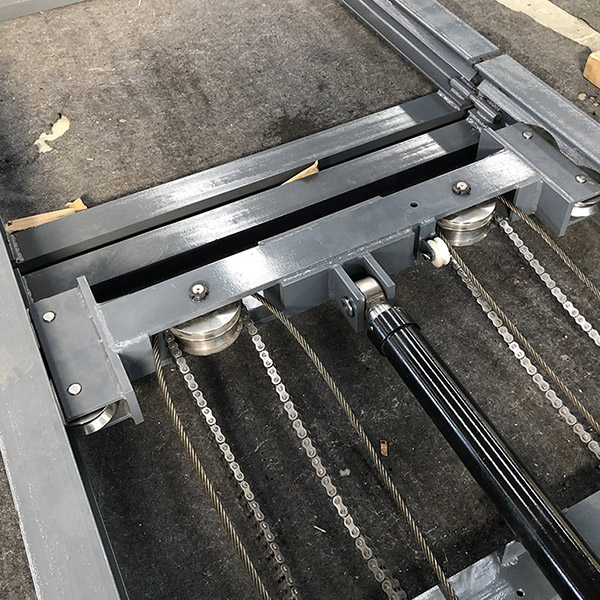

    Sliding Part

    Available Options

    Better Protection, Better Performance! Nostec lift can provide rich options for cargo lift, such as mesh enclosure, floor mesh, ground installation if site not available for pit, roller shutter door and safety, electric lock, and motor cover box for pump station and control.

    touch-screen
    Touch screen

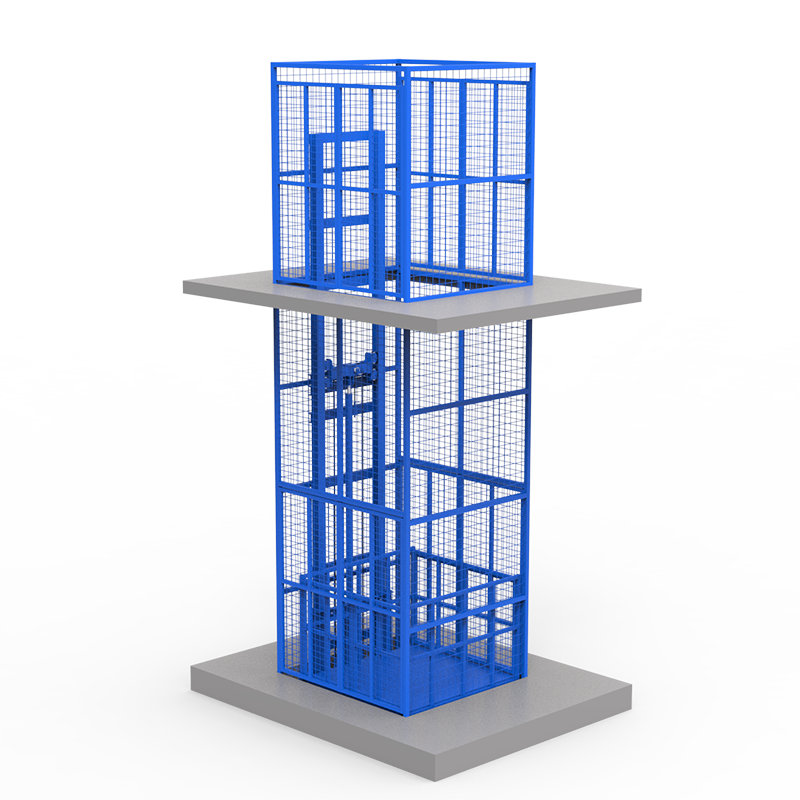

    Small fully caged lift
    Light capacity

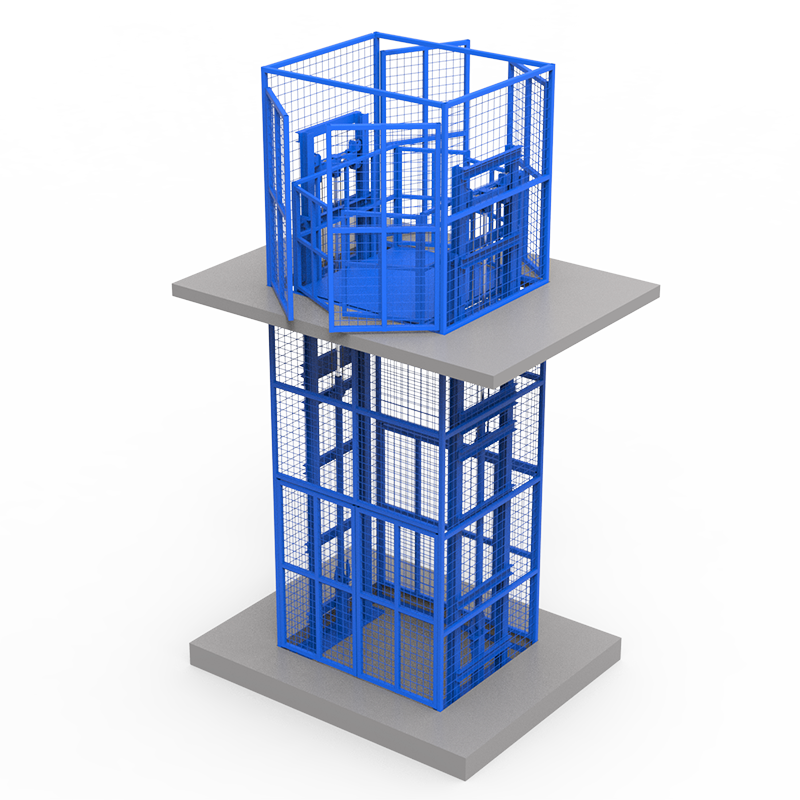

    fully caged goods lift
    Heavy capacity
    Roller shutter door
    Shutter door

    Standard model list for reference

    Highly recommended cargo lift models for the users
    ModelLift capacityLift heightPlatform size
    (W*D)
    Pit depthInstallation size
    (W*D)
    Power
    SJD1-51000kg5000mm1500*1800mm200mm2100*1960mm3kw
    SJD1-81000kg8000mm1500*1800mm200mm2100*1960mm4kw
    SJD2-3.22000kg3200mm1800*2200mm200mm2400*2360mm4kw
    SJD2-42000kg4000mm1800*2200mm250mm2400*2360mm4kw
    SJD2-52000kg5000mm1800*2200mm250mm2400*2360mm4kw
    SJD2-6.32000kg6300mm2000*2000mm250mm2700*2160mm4kw
    SJD3-43000kg4000mm1800*2200mm300mm2500*2360mm4kw
    SJD3-53000kg5000mm2200*2500mm300mm2900*2660mm4kw
    SJD3-83000kg8000mm2200*2500mm300mm2900*2660mm4kw
    SJD5-55000kg5000mm2500*2800mm300mm3200*2960mm5.5kw

    Cargo Lift Applications

    Fully caged cargo lift is commonly used in industrial, commercial, and institutional settings where there is a need to transport larger and heavier items, such as machinery, materials, and goods, especially the higher packages, small package cargos, and other places of place of people gathering, such as in warehouses and Distribution Centers, Retail Stores, Hotels, Residential Buildings, factories and Industrial Plants.

    Warehouse goods lift
    Warehouse goods lift
    warehouse goods lift
    warehouse goods lift

    Safety Devices

    Safety measures comes with cargo lift

    Emergency stop button

    The lift can be stopped immediately in case of any emergency

    Safety control voltage

    All the button and operation parts use DC 24V safety voltage, keep users’ safety

    Explosive-proof valve

    when hydraulic hose breaks the lift will stop immediately.

    Safety interlocking (Located on platform door)

    The lift won’t work if the door is open, it can only rise when the door is completely closed.

    Guardrail protection

    It can prevent the goods out from the platform during the lift going up.

    Electromagnet (Located on platform door)

    Both the platform door and landing door cannot be open during the lift working.

    Calling device

    Calling box (Located at ground and up floor), remote control also available

    Video speaks more

    Please check the video below to know more about the fully caged lift.
