Scissor lift platform is also called hydraulic scissor lift, which is designed for carrying heavy and big size goods, materials and cars from one level to another. It will be mounted into the pit for easier loading and unloading, just like a big size goods elevator, saves much labor and improves the working efficiency.
Laser cutting and powder coating
Upper and lower landing limits
Upper final limit
Heavy duty capacity available
Hold to run button
Emergency stop buttons.
Emergency descend valve
24V DC control circuit
Removable guardrail
Construction of self-supporting or supported mast.
5 year warranty on the structural components
1 year on the electrical components

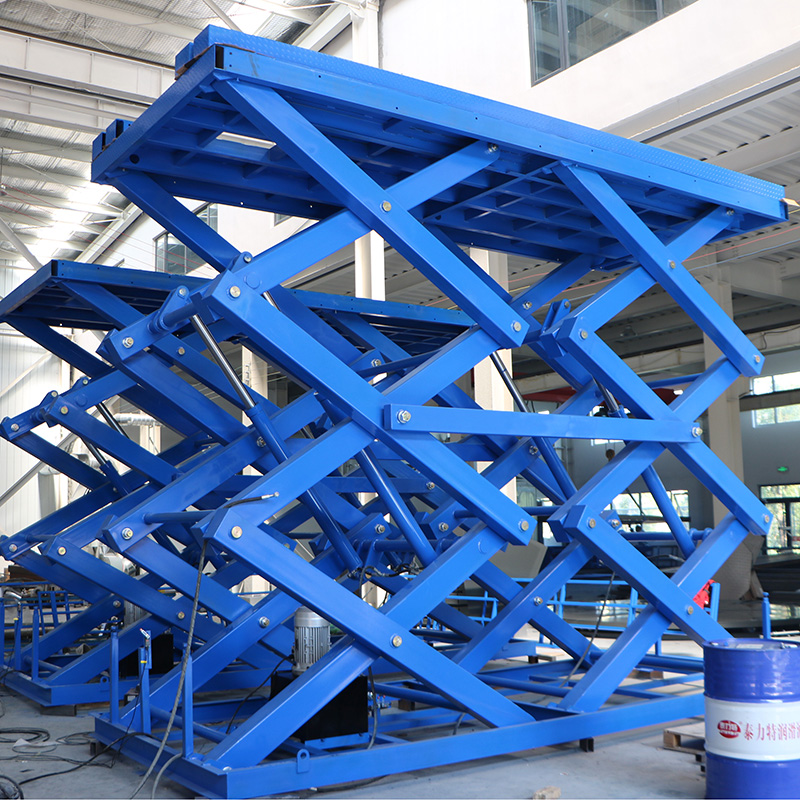

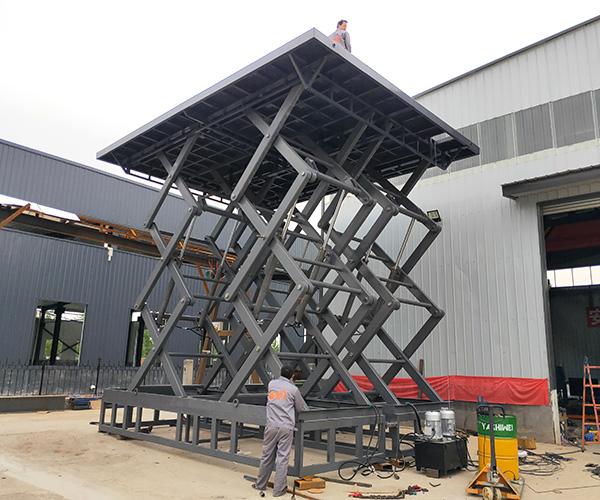

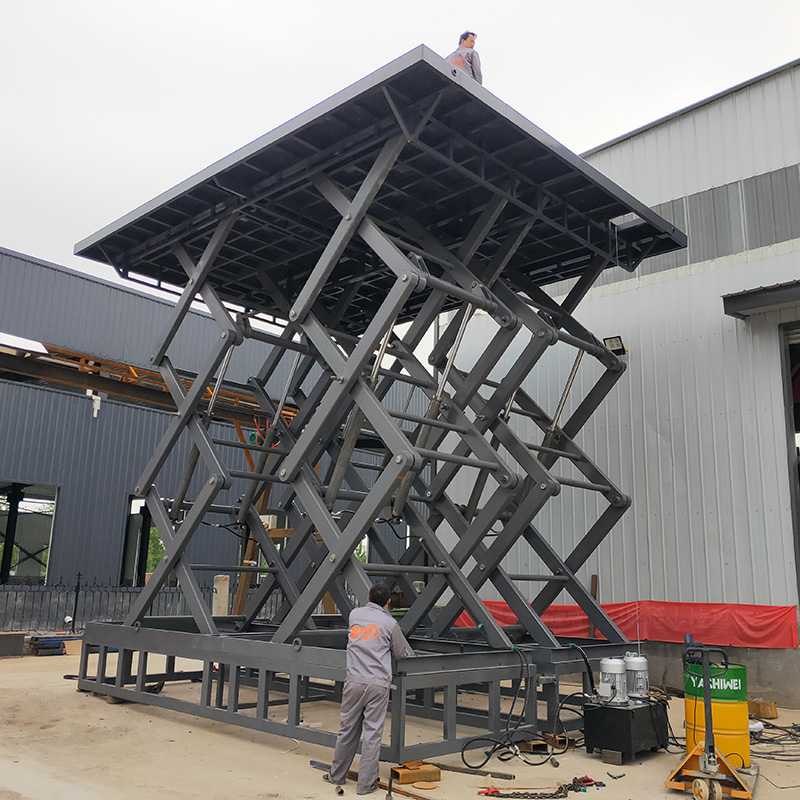

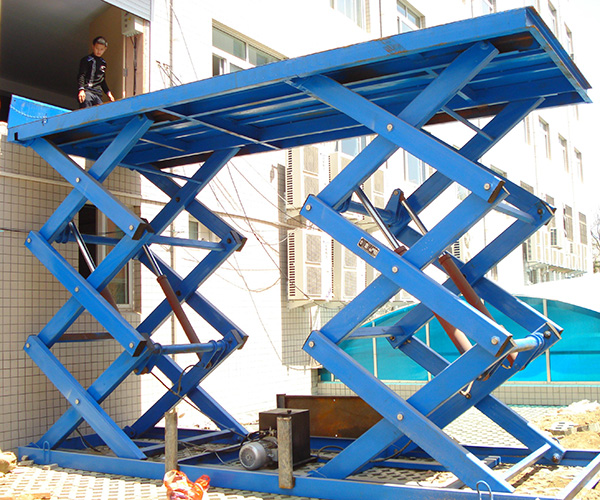

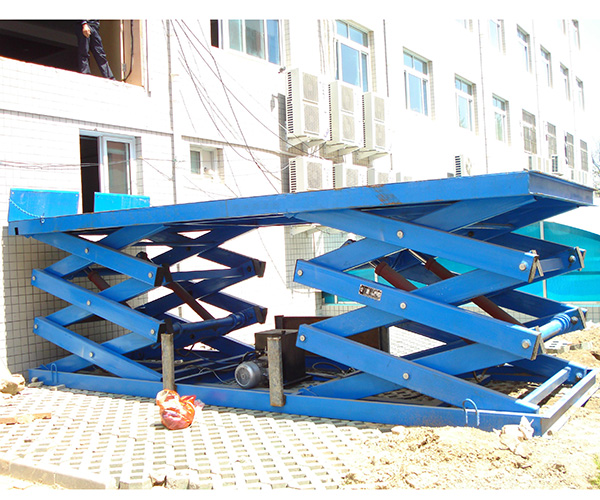

Scissor lift Pictures
Scissor Lift Platform
Scissor lift platform is also called hydraulic scissor lift, which is designed for carrying heavy and big size goods, materials and cars from one level to another. It will be mounted into the pit for easier loading and unloading, just like a big size goods elevator, saves much labor and improves the working efficiency.
Standard Features
Standard configuration comes with lift
Upgraded Options
Better Protection, Better Performance! Nostec lift can provide rich options for cargo lift, such as mesh enclosure, floor mesh, ground installation if site not available for pit, roller shutter door and safety, electric lock, and motor cover box for pump station and control.
Standard model list for reference
Highly recommended scissor platform lift models for the users
| Model | Load capacity | Min height | Travel height | Table size | Motor | Voltage |
| SJG5-2 | 5000KG | 520MM | 2000MM | 4000*5000MM | 7.5KW | 220v/380v |
| SJG5-3.5 | 5000KG | 650MM | 3500MM | 2800*5900MM | 7.5KW | 220v/380v |
| SJG5-4.5 | 5000KG | 1020MM | 4500MM | 3200*5200MM | 7.5KW | 220v/380v |
| SJG3-3.5 | 3000KG | 600MM | 3500MM | 2700*5950MM | 7.5KW | 220v/380v |
| SJG3-5 | 3000KG | 920MM | 3000MM | 3200*6500MM | 7.5KW | 220v/380v |
| SJG4-3.8 | 4000KG | 600MM | 3800MM | 2700*5940MM | 7.5KW | 220v/380v |
| SJG5-7 | 5000KG | 1020MM | 7000MM | 5100*5140MM | 11KW | 220v/380v |
| SJG5-1.2 | 5000KG | 500MM | 1200MM | 2200*2600MM | 7.5KW | 220v/380v |
| SJG5-5.8 | 5000KG | 1100MM | 5800MM | 6400*5900MM | 11KW | 220v/380v |
| SJG5-2.9 | 5000KG | 500MM | 2900MM | 5300*5300MM | 11KW | 220v/380v |
| SJG9-2 | 9000KG | 650MM | 2000MM | 2800*8000MM | 11KW | 220v/380v |
| SJG6-1.2 | 6000KG | 1200MM | 1200MM | 4000*4000MM | 7.5KW | 220v/380v |

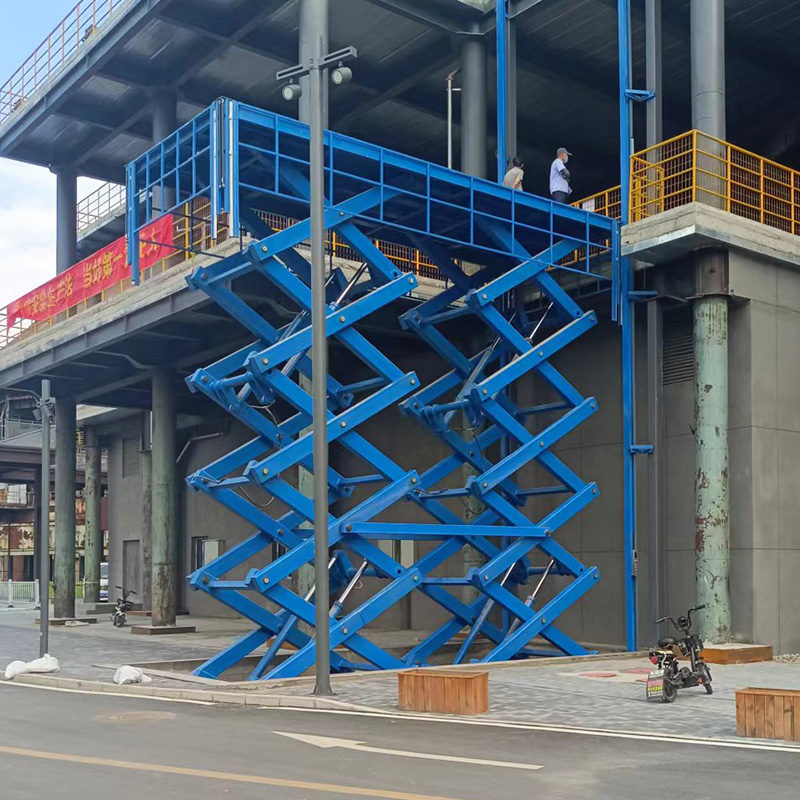

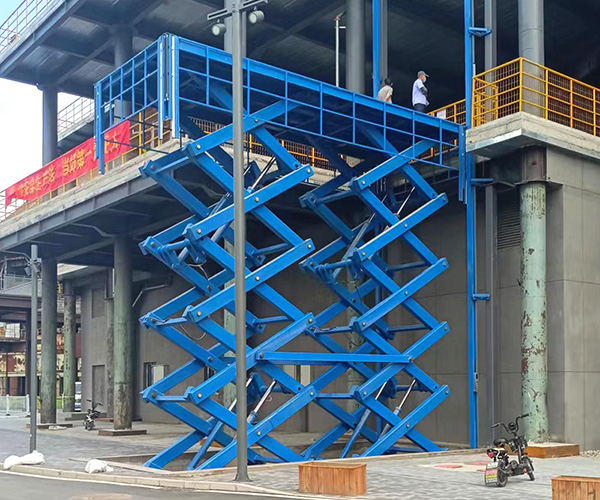

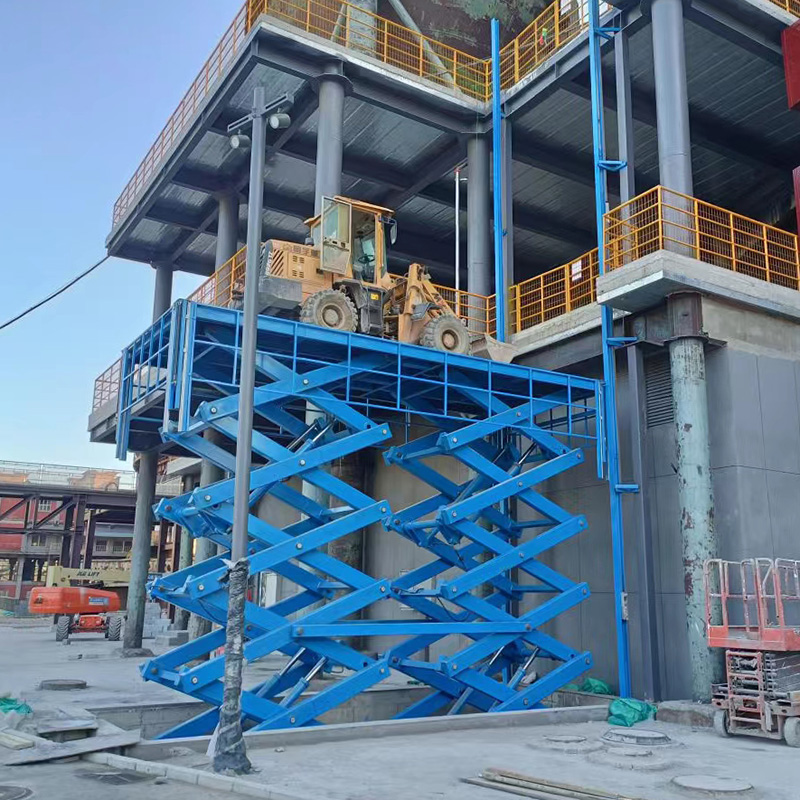

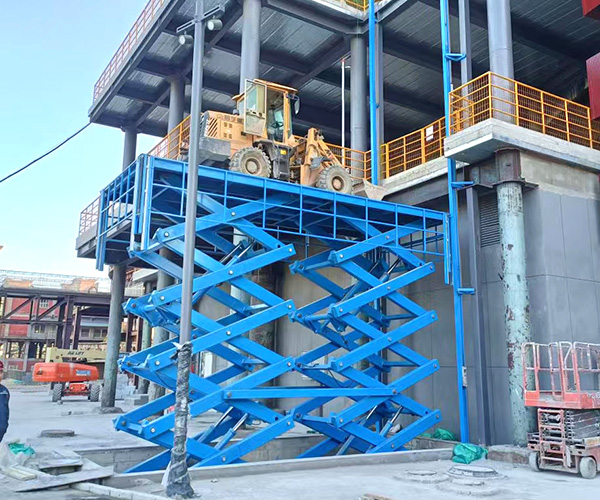

Scissor lift platform applications
This type scissor lift have many applications,, such as workshop, warehouse, garage, facilitating handling, production flows, logistics flows and even outdoor use.
- 3000kg, 2.5*5.5m
- 3000kg, 2.5*5.5m
- 4000kg, 2.5*5m
- 10t, 7.6m high
- 10t, 7.6m high
- 5000kg, 5*5m
Safety Devices
Safety measures comes with scissor lift
Emergency drop valve
The upper car can be lowered by manually operating the solenoid valve in case of power failure
Emergency stop button
The lift can be stopped immediately in case of any emergency
Maintain support bar
Support platform for maintain work.
Explosion-proof valves
The platform won't be down in case hydraulic hose burst.
Safety trip bar(Optional)
The lift will be stopped immediately if the bottom meets any obstacles when going down.
Safety output 24V voltage
control box has over-voltage and overload protection
Removable rails
1.1m high on lengthwise rails
Upper final limit
Upper final limit as safety backup switch The limit switch can also work in case of one broken
Motor cover
Motor cover for outdoor use with waterproof function (Optional)
Video speaks more
Please check the video below to know more about the scissor platform lift.
A scissor lift platform is used to lift heavy, oversized loads such as vehicles, machinery, stage equipment, and industrial materials between different height levels. It provides a wide and stable platform, making it ideal for car lifting, exhibitions, workshops, and production facilities.
A scissor lift platform is built with a larger platform size and higher load capacity compared to a standard scissor lift table. While lift tables focus on ergonomic material handling, lift platforms are designed for heavy-duty applications such as vehicle lifting, display stages, and industrial transfer operations.
Hydraulic scissor lift platforms typically support loads ranging from 3,000 kg to 10,000 kg or more, depending on the model. This makes them suitable for lifting cars, large equipment, and heavy industrial goods safely.

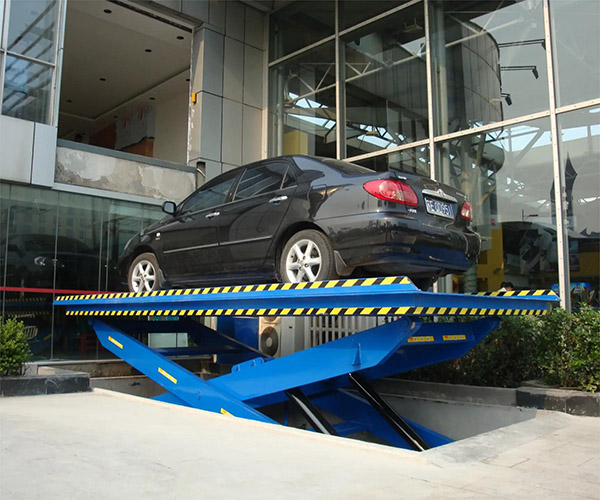

Pit installation allows the platform to sit level with the floor when lowered, enabling smooth vehicle entry and safe material loading. It improves operational efficiency, reduces manual effort, and keeps the workspace clean and unobstructed.
Scissor lift platforms are commonly used in automotive workshops, warehouses, factories, exhibition halls, performance stages, logistics centers, and outdoor industrial sites where large loads require stable vertical lifting.
