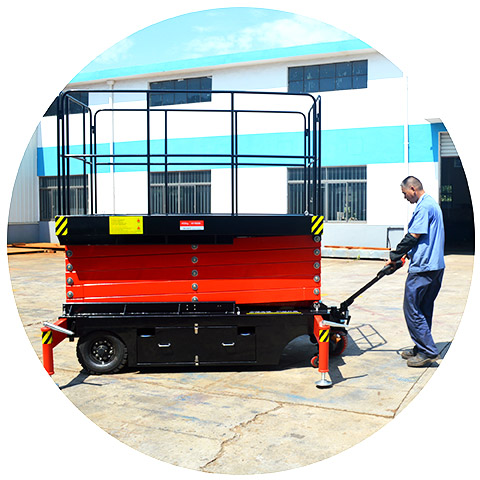

Towable electric scissor lift
Towed moving, electric lifting

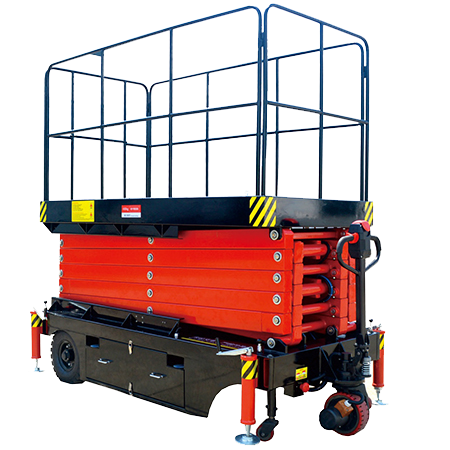

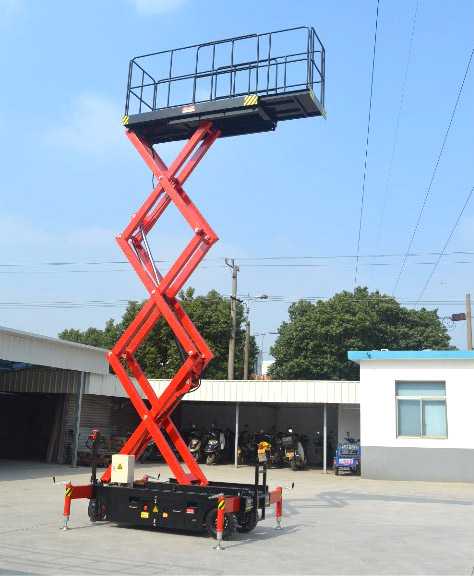

Towable electric scissor lift
Updated from trailer scissor lift, more stable and durable, this scissor lift is made of wide section manganese steel, providing more stability when lifting. Mainly used in station, dock, plant and construction site for aerial working in case of machinery installation, equipment and building maintenance.
Standard features
Standard configuration comes with lift
- DC 24V control voltage
- Auxiliary platform lowering
- Double emergency stop button

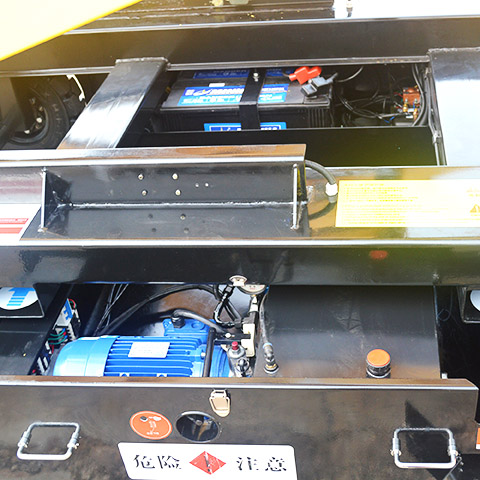

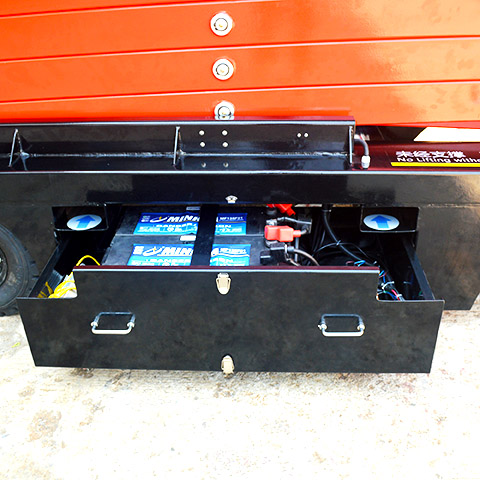

- Slide-out engine tray
- Locking key switch

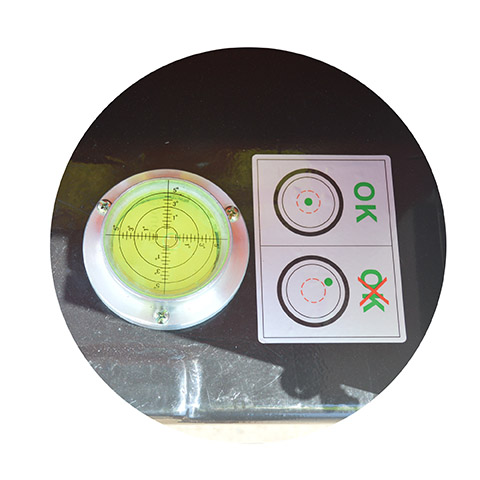

- Leveling device with supporting screw

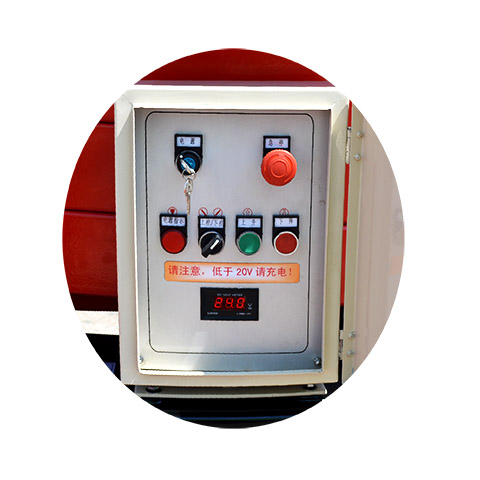

- Water proof electric box

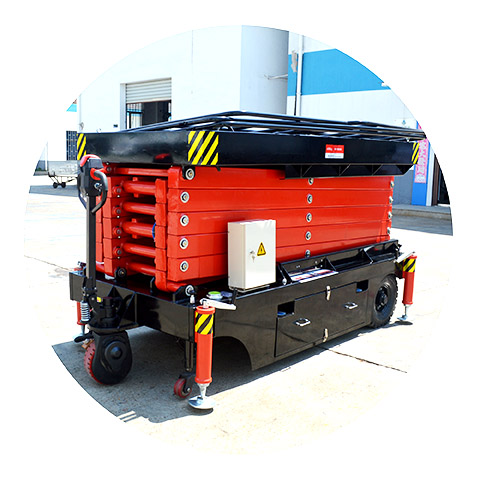

- Easy to assemble fence
- Durable base system

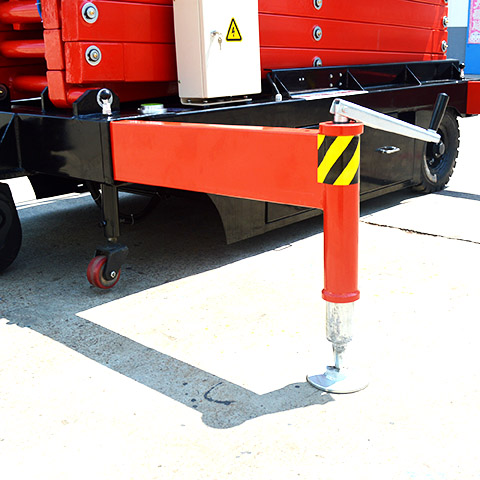

- Strong outrigger footprints
- Wide, side access forklift pockets
Optional
Explosion proof electric control system
Rubber solid tire
AC power to platform
Extension platform
Any questions? Please feel free to contact us!
Standard model list for reference
Highly recommended lift models for the users
| Model | Max platform Height | Min Platform Height | Platform size (mm) | Rated load | Lifting motor | Overall L*W*H (mm) | Weight |
| SJY0.45-4 | 4000mm | 800mm | 1450*600 | 450kg | DC/0.8V | 1500*750*1980 | 400kg |
| SJY0.45-5 | 5000mm | 900mm | 1450*600 | 450kg | DC/1.5v | 1500*750*2080 | 450kg |
| SJY0.45-6A | 6000mm | 980mm | 1700*750 | 450kg | DC/1.5v | 1900*900*2160 | 650kg |
| SJY0.45-8 | 8000mm | 1200mm | 2300*800 | 450kg | DC/1.5v | 2550*1050*2380 | 1350kg |
| SJY0.45-10 | 10000mm | 1360mm | 2300*1120 | 450kg | DC/2.2v | 2550*1400*2540 | 1700kg |
| SJY0.45-12 | 12000mm | 1480mm | 2300*1120 | 450kg | DC/2.2v | 2550*1440*2660 | 1850kg |
| SJY0.45-14 | 14000mm | 1800mm | 2800*1350 | 450kg | DC/3v | 3100*1600*2800 | 2750kg |
